Metal Push Button Switch Distributors, Suppliers-NICOLE&JOSH MATERIALS COMPANY.
NICOLE&JOSH MATERIALS COMPANY is one of the key supplier and exporter in Taiwan. Our company specializes in the export of Metal Push Button Switch. To benefit from our strong OEM/ODM capabilities and considerate services, contact us today. We will sincerely create and share success with all clients. More styles wanted, please contact us right now!
NICOLE&JOSH MATERIALS COMPANY is one of the key supplier and exporter in Taiwan. Our company specializes in the export of Metal Push Button Switch. To benefit from our strong OEM/ODM capabilities and considerate services, contact us today. We will sincerely create and share success with all clients. More styles wanted, please contact us right now!
Find and buy Metal Push Button Switch in the best price from the supplier in Taiwan. Get contact details & address of the suppliers, company of Metal Push Button Switch in Taiwan
Our
Our
Metal Push Button Switch
manufactured using high grade factor inputs in compliance with international quality standards also available in various specifications to cater the variegated needs of our valuable clients and can be customized as per their demands at within market rate. A team of quality examiners makes sure that only flawless products are dispatched for the patrons' premises. We sincerely hope to establish longtime and friendly business relationship with you.

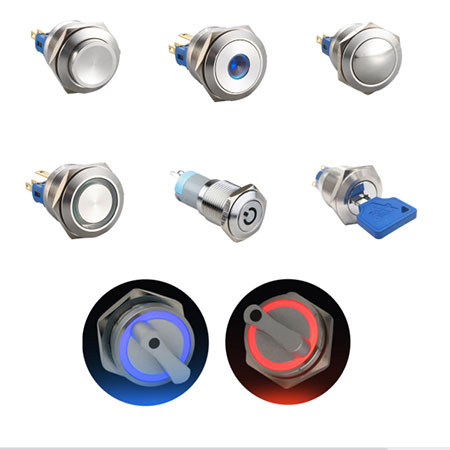

Metal Push Button Switch
Model - Metal push button switch
Ø12/Ø16/Ø19/Ø22/Ø25/Ø30/Ø40
Button shape：flat head, arc surface, high head with light, ring with light, flat head with light, knob switch, knob switch with light, key selector switch.
Operation mode：self-reset, self-locking.
Self-recovery：Press down to turn on the power, and turn off the power immediately after letting go
Self-locking：press down to turn on the power, then press the second time to turn off the power
Contact Mounting Method：Solder Type, Screw Type
Lighted type：without light, with light
Indicator color：red, green, yellow, white, blue
Rated voltage：6.3VDC, 24VDC, 12VDC, 220VAC
Waterproof and dustproof：IP67
Through the US UL, EU CE certification
Button shape：flat head, arc surface, high head with light, ring with light, flat head with light, knob switch, knob switch with light, key selector switch.
Operation mode：self-reset, self-locking.
Self-recovery：Press down to turn on the power, and turn off the power immediately after letting go
Self-locking：press down to turn on the power, then press the second time to turn off the power
Contact Mounting Method：Solder Type, Screw Type
Lighted type：without light, with light
Indicator color：red, green, yellow, white, blue
Rated voltage：6.3VDC, 24VDC, 12VDC, 220VAC
Waterproof and dustproof：IP67
Through the US UL, EU CE certification
- If you can't find the metal push button switch you need, please contact us.
Enquiry Now
Products List

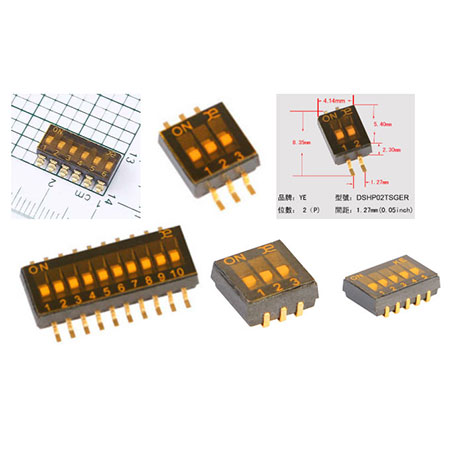

DSHP02TSGER / DSHP03TSGER / DSHP04TSGER / DSHP05TSGET / DSHP06TSGET / DSHP08TSGET / DSHP10TSGER / DSHP03TJGER / DSHP04TJGET / DSHP05TJGER / DSHP06TJGER / DSHP08TJGET / DSHP10TJGER
DIP switch (also called DIP switch, toggle switch, overclocking switch, address switch, toggle switch, digital switch, DIP switch) is an address switch used for operation control, using the 0/1 binary coding principle. In layman's terms, it is a miniature switch that can be toggled by hand, so there are also many called DIP switches.
Always Compliant with EU RoHS/ELV Standard.
1.27mm pin spacing color there are black, red, and blue differences .
Type：SMD.
Features：High Temperature Resistant, Gold Plated, Durable.
If you can't find the DIP Switch you need, please contact us.
DSIC01LHGET / DSIC02LHGET / DSIC03LHGET / DSIC04LHGET / DSIC05LHGET / DSIC06LHGET / DSIC07LHGET / DSIC09LHGET / DSIC10LHGET / DSIC12LHGET / DSIC01LSGET / DSIC02LSGET / DSIC03LSGET / DSIC04LSGET / DSIC05LSGET / DSIC06LSGET / DSIC07LSGET / DSIC08LSGET / DSIC09LSGET / DSIC010LSGET / DSIC12LSGET

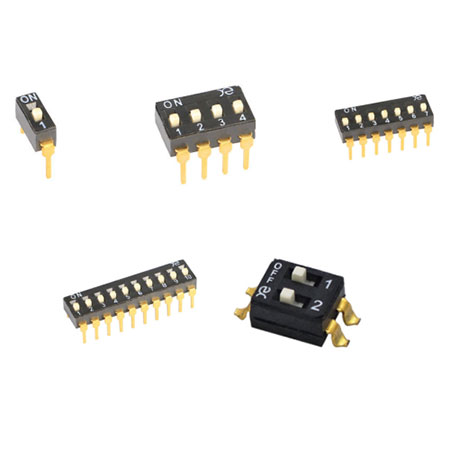

There are many models of DIP switches, which are divided into direct insertion (DIP) and patch type (SMD) according to the pin position, and flat dial and side dial according to the way of dialing. According to the pin spacing, there are 2.54mm and 1.27mm pin spacing, and according to the color, there are black, red, and blue differences. According to the state, there are two-state and three-state points. According to the number of digits, it is usually 11 digits such as 1-10 digits, 12 digits, etc.
Always Compliant with EU RoHS/ELV Standard.
Product features：2.54mm pitch (0.1 inch pitch); in-line (DIP)/SMD (SMT) DIP switch ; standard gold-plated contacts;
Product category：1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12 digits
DS is short for Dip Switch
IC means flat dial 2.54mm pitch
L means push and twist high push (another：S is for flat push and T is for flat push glue)
H for H-shaped pins (A and H-shaped pins for plug-ins; S-shaped, J-shaped and Z-shaped for SMD)
GE stands for Gold Plated
T means that the packaging method is IC tube (letter R means roll)
If you can't find the DIP Switch you need, please contact us.

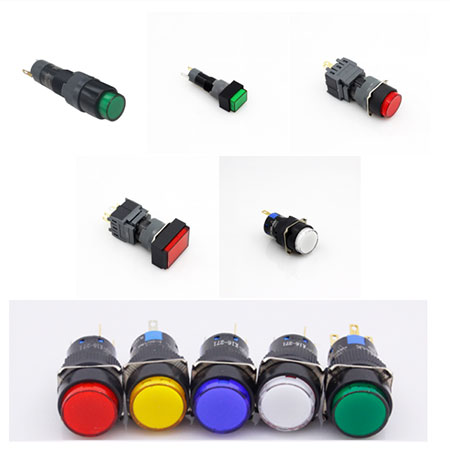

8mm / 10mm / 12mm / 16mm / 22mm
Appearance：round, square, rectangular.
Action category：self-reset, self-locking.
Lighted type：without light, with light.
Indicator color：red, green, yellow, white, blue.
Rated voltage：6.3VDC, 24VDC, 12VDC, 220VAC.
Contact：single pole, double pole, triple pole.
Product Features：
Contact Type：Sterling Silver Contact Gold Plated
Maximum Voltage：250V AC/DC
Minimum Load：5V AC/DC 1Ma
Thermal current 2A
Operating temperature：-25ºC to +55ºC
Electrical life：100,000 times
Mechanical life：1 million times
Good touch, long service life, high sensitivity
If you can't find the DIP Switch you need, please contact us.
