Electronic Sensor

PM-K25 / PM-K25-R / PM-K25-C3 / PM-K25-P PM-L25 / PM-L25-R / PM-L25-C3 / PM-L25-P PM-U25 / PM-U25-R / PM-U25-C3 / PM-U25-P PM-F25 / PM-F25-R / PM-F25-C3 / PM-F25-P PM-R25 / PM-R25-R / PM-R25-C3 / PM-R25-P PM-K25 replace PM-K24 / PM-K25-R replace PM-K24-R / PM-K25-C3 replace PM-K24-C3 / PM-K25-P replace PM-K24-P PM-L25 replace PM-L24 / PM-L25-R replace PM-L24-R / PM-L25-C3 replace PM-L24-C3 / PM-L25-P replace PM-L24-P PM-U25 replace PM-U24 / PM-U25-R replace PM-U24-R / PM-U25-C3 replace PM-U24-C3 / PM-U25-P replace PM-U24-P PM-F25 replace PM-F24 / PM-F25-R replace PM-F24-R / PM-F25-C3 replace PM-F24-C3 / PM-F25-P replace PM-F24-P PM-R25 replace PM-R24 / PM-R25-R replace PM-R24-R / PM-R25-C3 replace PM-R24- C3 / PM-R25-P replace PM-R24-P NPN output PM-25 / PM-25-R / PM-25-C3 PNP output PM- 25-P Sensing range 6 mm 0.236 in (fixed)  Supply voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less Three protection circuits standard on all models  Reverse supply polarity protection circuit Reverse output polarity protection circuit Output short-circuit protection circuit UL / C-UL, CE, Korean S Mark Approved UL：Recognition Korea's S-mark certification：NPN Output / Cable length 1m 3.281 ft type only (Excluding bending-resistant cable type)

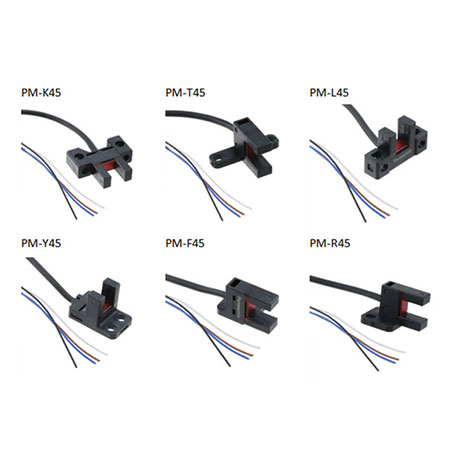

PM-K45 / PM-K45-P / PM-K45-C3 / PM-K45-P-C3 PM-T45 / PM-T45-P / PM-T45-C3 / PM-T45-P-C3 PM-L45 / PM-L45-C3 / PM-L45-P / PM-L45-P-C3 PM-Y45 / PM-Y45-C3 / PM-Y45-P / PM-Y45-P-C3 PM-F45 / PM-F45-C3 / PM-F45-P / PM-F45-P-C3 PM-R45 / PM-R45-C3 / PM-R45-P / PM-R45-P-C3 PM-K45 replace PM-K44 / PM-K45-P replace PM-K44-P / PM-K45-C3 replace PM-K44-C3 / PM-K45-P-C3 replace PM-K44-P-C3 PM-T45 replace PM-T44 / PM-T45-P replace PM-T44-P / PM-T45-C3 replace PM-T44-C3 / PM-T45-P-C3 replace PM-T44-P-C3 PM-L45 replace PM-L44 / PM-L45-P replace PM-L44-P / PM-L45-C3 replace PM-L44-C3 / PM-L45-P-C3 replace PM-L44-P-C3 PM-Y45 replace PM-Y44 / PM-Y45-P replace PM-Y44-P / PM-Y45-C3 replace PM-Y44-C3 / PM-Y45-P-C3 replace PM-Y44-P-C3 PM-F45 replace PM-F44 / PM-F45-P replace PM-F44-P / PM-F45-C3 replace PM-F44-C3 / PM-F45-P-C3 replace PM-F44-P-C3 PM-R45 replace PM-R44 / PM-R45-P replace PM-R44-P / PM-R45-C3 replace PM-R44-C3 / PM-R45-P-C3 replace PM-R44-P-C3 NPN output PM- 45 / PM- 45-C3 PNP output PM- 45-P / PM- 45-P-C3 Sensing range 6 mm 0.236 in (fixed)  Supply voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less Output operation Incorporated with 2 outputs：Light-ON / Dark-ON Three protection circuits standard on all models Reverse supply polarity protection circuit Reverse output polarity protection circuit Output short-circuit protection circuit Industry’s first! IP64 rating Ample beam emitting / receiving distance of 6 mm 0.236 in The upper-limit and lower-limit positions of beam can be visually confirmed from the front, back, right and left sides of the sensor unit. This allows easy adjustment of the position of sensing object. UL / C-UL, CE, Korean S Mark Approved UL：Recognition Korea's S-mark certification：NPN Output / Cable length 1m 3.281 ft type only (Excluding bending-resistant cable type)

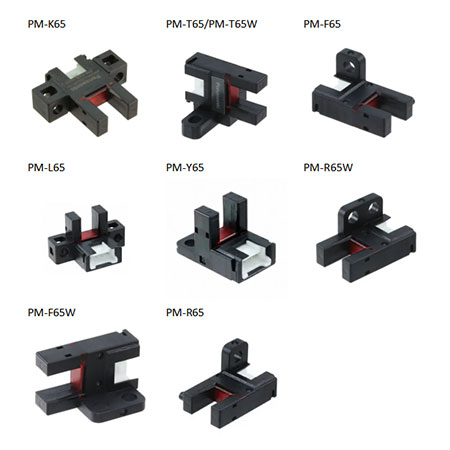

PM-K65 / PM-K65-P PM-T65 / PM-T65-P / PM-T65W / PM-T65W-P PM-L65 / PM-L65-P PM-Y65 / PM-Y65-P PM-F65 / PM-F65-P / PM-F65W / PM-F65W-P PM-R65 / PM-R65-P / PM-R65W / PM-R65W-P PM-K65 replace PM-K54 / PM-K65-P replace PM-K54-P PM-T65 replace PM-T54 / PM-T65-P replace PM-T54-P / PM-T65W replace PM-T54W / PM-T65W-P replace PM-T54W-P PM-L65 replace PM-L54 / PM-L65-P replace PM-L54-P PM-Y65 replace PM-Y54 / PM-Y65-P replace PM-Y54-P PM-F65 replace PM-F54 / PM-F65-P replace PM-F54-P / PM-F65W replace PM-F54W / PM-F65W-P replace PM-F54W-P PM-R65 replace PM-R54 / PM-R65-P replace PM-R54-P / PM-R65W replace PM-R54W / PM-R65W-P replace PM-R54W-P NPN output PM- 45 / PM- 45-C3 PNP output PM- 45-P / PM- 45-P-C3 Sensing range 6 mm 0.236 in (fixed)  Supply voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less Output operation Incorporated with 2 outputs：Light-ON / Dark-ON Three protection circuits standard on all models Reverse supply polarity protection circuit Reverse output polarity protection circuit Output short-circuit protection circuit Ample beam emitting / receiving distance of 6 mm 0.236 in The upper-limit and lower-limit positions of beam can be visually confirmed from the front, back, right and left sides of the sensor unit. This allows easy adjustment of the position of sensing object. UL / C-UL, CE, Korean S Mark Approved Korea's S-mark certification：NPN Output

EE-SX95 Series： EE-SPX303N / SPX403N Series EE-SX77 / SX87 Series EE-SX47 / SX67 Series EE-SX97 Series EE-SPX74 / SPX84 Series EE-SPX-W Series EE-SX95：Mount using M2 or M3 screws, Reliable sensing slot depth of 6.5 mm EE-SPX303N / SPX403N：A Wide Slot Width of 13mm and Superior,Resistance to Light Interference and Noise. EE-SX77 / SX87：5 to 24 VDC supply voltage, Indicators can be monitored from both sides EE-SX47 / SX67：IP50 enclosure rating, Light-ON only or Light-ON / Dark-ON selectable output types 5 to 24 VDC supply voltage EE-SX97：Easy-to-mount end position or limit detection sensors, Built-in overheat protection circuit EE-SPX74 / SPX84：5 to 24 VDC supply voltage, IP50 enclosure rating EE-SPX-W：5 to 24 VDC supply voltage,IP50 enclosure rating
