KTK Fuses
NICOLE&JOSH MATERIALS COMPANY is a professional enterprise, it has a well-educated and well-trained technological and managerial stuff. We have very strictly quality control system and has the advanced testing machine and advanced checking equipment. So we're a professional supplier supplying series of KTK Fuses.
KTK Fuses
Model - Bussmann KTK Fuses
KTK-1-2-3-4-5-6-7-8-9-10-12-15-20-25-30, 500V
KTK-1 / 10-2 / 10-3 / 10-4 / 10-1 / 2-6 / 10-3 / 4
Bussmann offers the widest selection of complementary and small fuses, including time-delay and fast-acting designs, for voltages up to 600Vac and 600Vdc.
Compact low voltage midget and supplemental fuses.

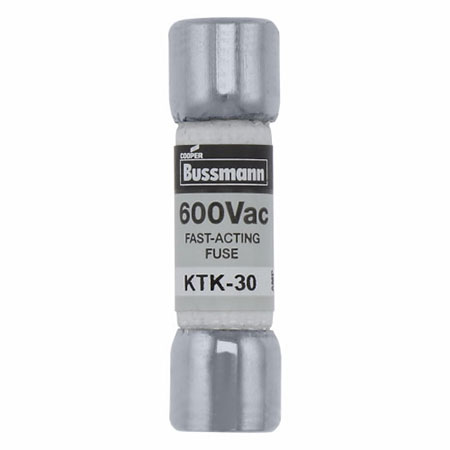

KTK 13⁄32˝ x 1-1⁄2˝ 600Vac fast-acting supplemental fuses.
Features
Color coded black for 600Vac voltage rating
KTK-1 / 10-2 / 10-3 / 10-4 / 10-1 / 2-6 / 10-3 / 4
Bussmann offers the widest selection of complementary and small fuses, including time-delay and fast-acting designs, for voltages up to 600Vac and 600Vdc.
Compact low voltage midget and supplemental fuses.
KTK 13⁄32˝ x 1-1⁄2˝ 600Vac fast-acting supplemental fuses.
Features
Color coded black for 600Vac voltage rating
- Fast-acting for resistive loads
- Melamine tube construction
- Nickel-plated endcaps
- Control circuits
- Lighting circuit protection
- Meter circuits
- If you can't find the fuses you need, please contact us.
We guarantee we must make you satisfy with our product and service. Therefore, if you have any question about our
KTK Fuses
, you can tell us. We will give you early reply. If you are interested in our product or you want to inquiry, please feel free to contact us or you can email to us. Join us right now!Enquiry Now
Products List
FNQ-1-2-3-4-5-6-7-8-10-12-15-20-25-30,500V
FNQ-1 / 10-2 / 10-3 / 10-4 / 10-1 / 2-6 / 10-8 / 10-1 / 8-15 / 100-3 / 16
Bussmann offers the widest selection of complementary and small fuses, including time-delay and fast-acting designs, for voltages up to 600Vac and 600Vdc.

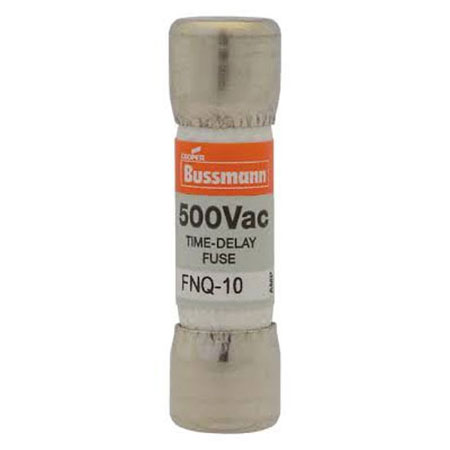

FNQ 13⁄32" x 1-1⁄2" 500Vac time-delay supplemental fuses
Compact low voltage midget and supplemental fuses
Features
Color coded for 500Vac maximum voltage rating
Fiber tube construction
Nickel-plated brass endcaps Typical applications
Motor control transformers
Circuits with in-rush currents.Catalong symbol / color code
color code:FNQ - Orange (500Vac maximum voltage)
If you can't find the fuses you need, please contact us.

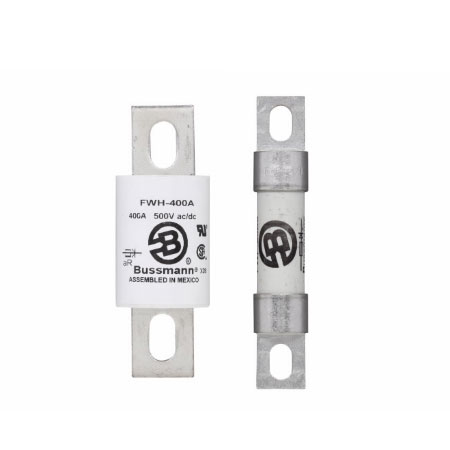

FWH-35A / FWH-50A / FWH-70A / FWH-80A / FWH-90A
FWH-35B / FWH-40B / FWH-45B / FWH-50B / FWH-60B / FWH-70B / FWH-80B / FWH-90B FWH-100B / FWH-125B / FWH-150B / FWH-175B / FWH-200B / FWH-225A / FWH-250A FWH-275A / FWH-300A / FWH-325A / FWH-350A / FWH-400A / FWH-450A / FWH-500A / FWH-600A / FWH-700A / FWH-800A / FWH-1000A / FWH-1200A / FWH1400A / FWH1600A
FWP-35B / FWP-40B / FWP-50B / FWP-60B / FWP-70B / FWP-80B / FWP-90B / FWP-100B / FWP-125A / FWP-150A / FWP-175A / FWP-200A / FWP-225A / FWP-250A / FWP-300A / FWP-350A / FWP-400A / FWP-450A / FWP-500A / FWP-600A / FWP-700A / FWP-800A / FWP-900A / FWP-1000A / FWP-1200A
Bussmann offers the widest selection of complementary and small fuses, including time-delay and fast-acting designs, for voltages up to 600Vac and 600Vdc.
High speed fuses provide superior protection or isolation for components such as diodes, silicon controlled rectifiers (SCRs), Gate torn-Off Thyristors (GTOs) and IGBTs and in light and heavy harsh DC traction applications as high as 4000Vdc and 10,000A. Also used for the protection of DC link / power converters. Optimized dimensions and materials allow for excellent thermal dissipation for high current cycling enviroments, or heavy duty applications.
Eaton's Bussmann® series compact high speed fuses feature spacesaving case sizes for protecting semiconductor devices up to 500 Vac / dc in ratings from 50 to 400 amps.
If you can't find the fuses you need, please contact us.
DM03 / DM05 / DM10 / DM16 / DM20 / DM32
LM03 / LM05 / LM10 / LM13 / LM16 / LM20 / LM32 / LM40 / LM50
HM03 / HM05 / HM10 / HM16 / HM20 / HM32 / HM50

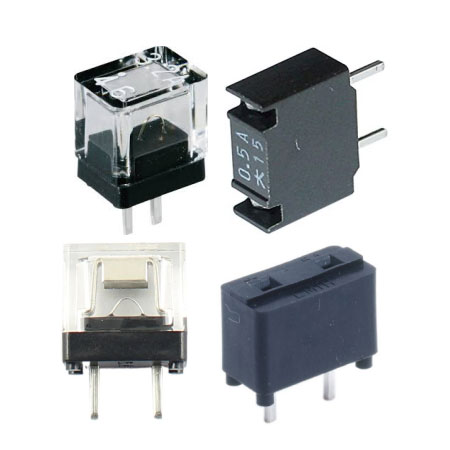

DM,LM,HM Fuseholders
Radial type Micro fuses are those of the non-reusable type mounted on PCBs of the through-hole type, with their conducting parts shielded when fuses are mounted on PCBs, facilitating electric insulation design and high-density mounting.
DM Micro Fuses Application at control panel,industrial robot,rail car
LM Micro Fuses Application at control panel,industrial robot, liquid crystal television
HM Micro Fuses Application at control panel,industrial robot, liquid crystal television
Standard for Safety:UL / CSA
If you can't find the fuses you need, please contact us.
GP032 / GP05 / GP10 / GP100 / GP150 / GP16 / GP20 / GP25 / GP32 / GP40 / GP50 / GP75
EP100 / EP125 / EP150 / EP200 / EP50 / EP80
MP032 / MP05 / MP063 / MP10 / MP16 / MP20 / MP32 / MP50 / MP63 / MP75

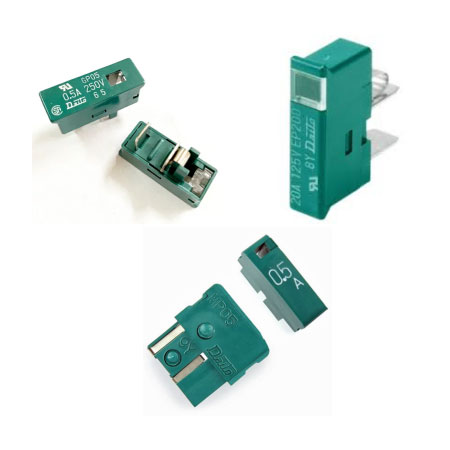

Daito's alarm indicating fuses are highly reliable units proven over many years in mission critical equipment such as telephone switching systems and other communication equipment and systems, machine tools and other industrial equipment, and plant controllers in nuclear power and other plants.
GP alarm indicating fuses router / switch,control panel, liquid crystal television
Rated Voltage:AC / 250V
EP alarm indicating fuses router / switch
Rated Voltage:AC / 125V
MP alarm indicating fuses router / switch, industrial, robot rail car, control panel
Rated Voltage:AC / 125V
If you can't find the fuses you need, please contact us.
